Paint Spray Booth

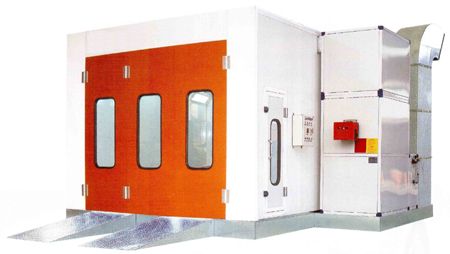

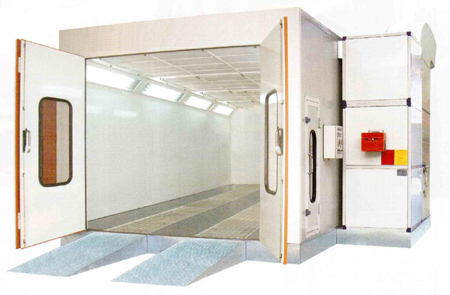

Paint Spray Booth, GT-020GL100
Specifications
| Product Name | Paint Spray Booth | |
| Model No. | GT-020GL100N | |
| External size (m) | 7.0 x 5.3 x 3.5 (m) | |
| Internal size (m) | 6.9 x 3.9 x 2.7 (m) | |
| Wall panel | Color | Red |
| Material | EPS, Thickness: 50 mm | |
| Color steel | Thickness: 0.326mm (with metal edge cover) | |
| Front door | Enter size | 3 x 2.66 (m) |
| Structure | 4 folded sheet metal process without frame | |
| Color | Red | |
| Panel structure | White color (front horizontal panel and front vertical panels) | |
| Safety door | Color & size | Red; 2000 x 800 (mm), (1 piece in the side wall) |
| Lock | With pressure lock | |
| Light system | Upper light | 2 sides x 5 sets x 4 pieces, (40 W / piece) |
| Side light | No | |
| Generator | Color | Red panel with white frame |
| Frame | Iron frame with Aluminum angle, powder coating | |
| Burner | Italy burner: Riello G20 | |
| Intake fan | 1 set of 7.5kw | |
| Exhaust fan | 1 set of 5.5kw | |
| Fan capacity | 24000 m3/h | |
| Motor voltage | 380v 50hz 3ph | |
| Control panel | With overload, overheat, phase protection | |
| Total power | 14kw | |
| Basement | Floor | Full grids |
| Floor filter | Imported filter, 5 rows/set | |
| Ramps | 2 pieces | |
| Filter frame on the ceiling | Top filter | Imported filter: 4 pieces/set |
| Structure | Hinge installed, iron welded, powder coating | |
| Remarks | With oil tank and tank frame | |
