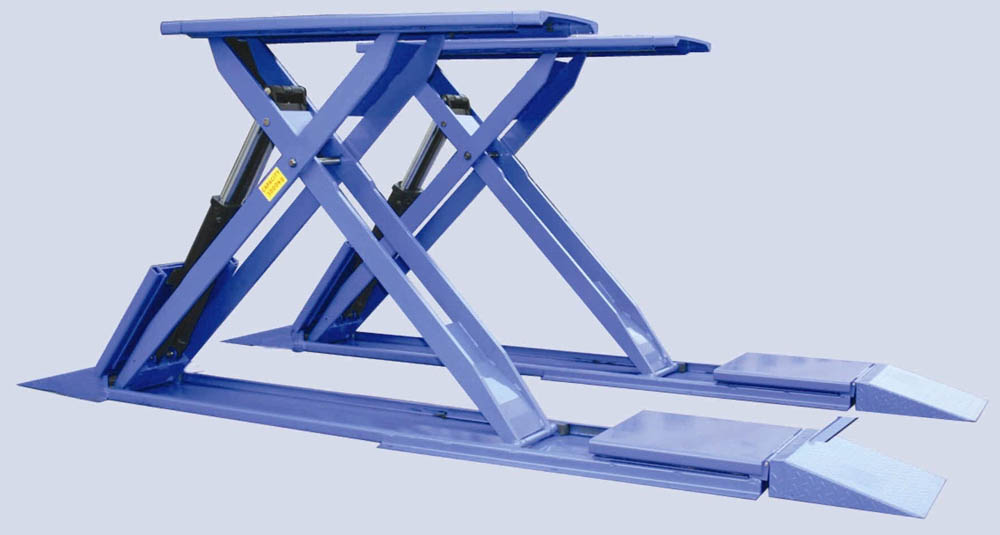

Small Scissor Lift
3.5 Ton Low Profile Slide Extension Scissor Lift, GC-3.0SX, GC-3.5SX
Features
- Scissor structure with floor installation, be convenient for tyre operation and wheelbase maintenance.

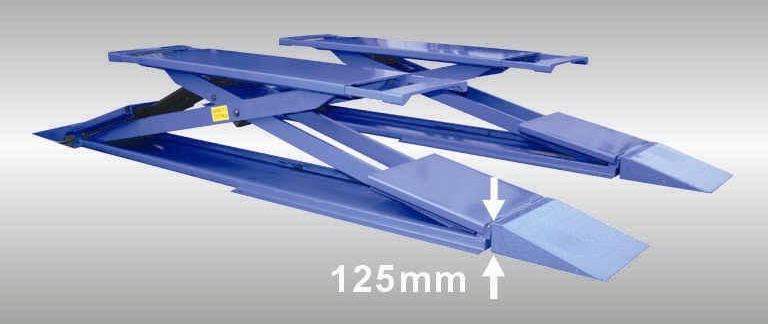

- Original height is only 125mm.
- Hydraulic cylinders lock each other and anti-explosion for pipe, stable, reliable and synchronization.
- Italian hydraulic power unit.
Specifications
| Model | GC-3.0SX | GC-3.5SX |
| Capacity | 3000kg | 3500kg |
| Lifting height | 1830mm | |
| Overall width | 2120mm | |
| Overall length | 3840mm | |
| Platform width | 530mm | |
| Platform length | 1650-2100mm | 1650-2050mm |
| Minimum height | 125mm | |
| Lifting time | ≤50S | |
| Lowering time | ≤60S | |
| Voltage AC 400 or 230V ± 5% 50 Hz | ||
 |
 |
 |
|
| Italian Hydraulic Pump | |
 |
