Small Scissor Lift
Small Scissor Lift (Single Extension), GC-3.0S
3 Ton Small Scissor Lift (in Ground, Single Extension)
Features
- Scissor concealing platform structure occupies small space.
- Device performs stable work relying on imported hydraulic, pneumatic and electrical components.
- The pneumatic wide-teeth self-locking insurance system and anti-explosion pipe equipment ensure the safety and reliability of the device.
- Easy for tyre mount and dismount and chassis maintenance.
- With highest lifting height of 2M among similar products and adjustable platform length is suitable for various types of automobile.

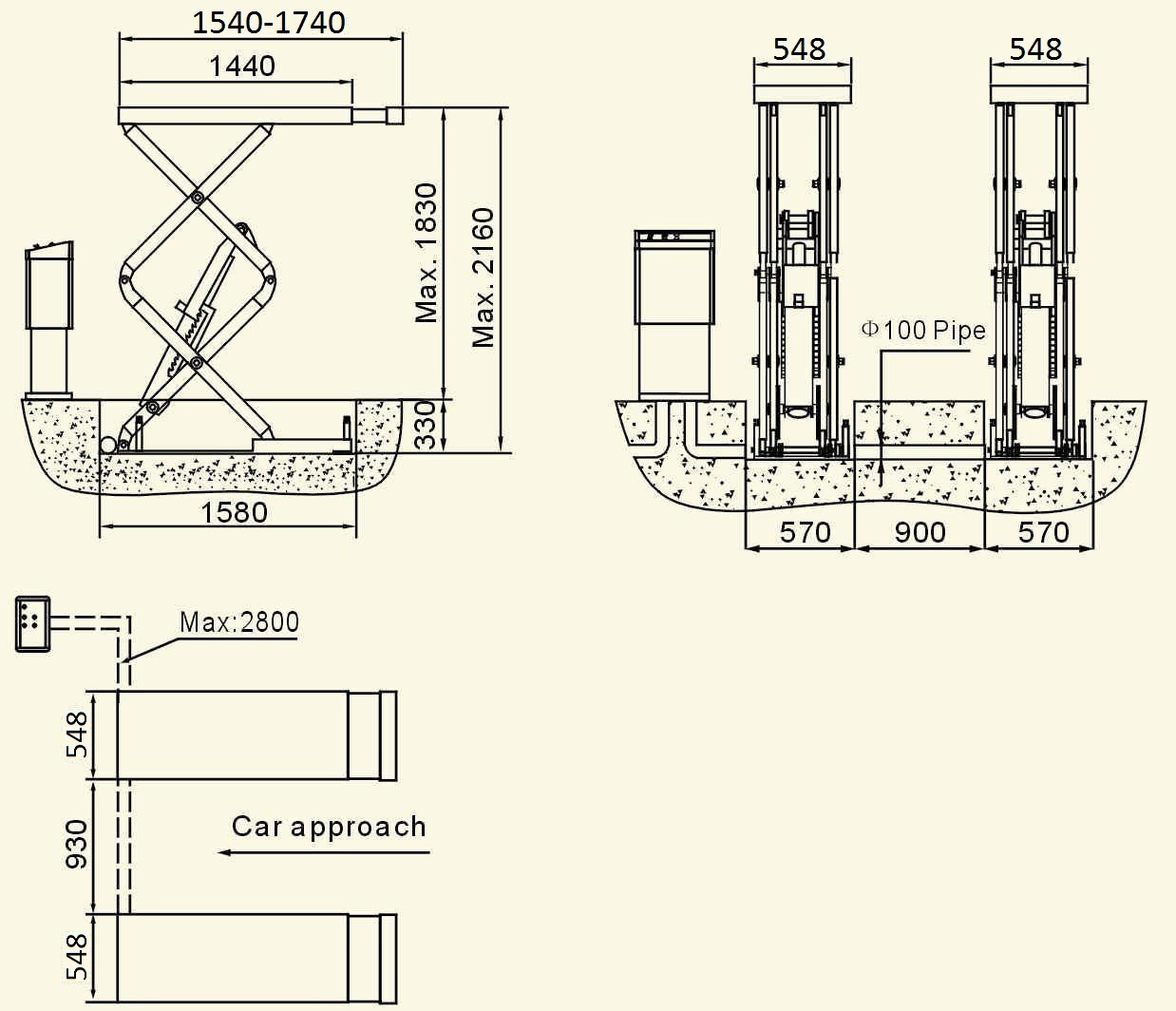

Specifications
| Capacity | 3000kg |
| Lifting height | 2160mm |
| Overall width | 2026mm |
| Overall length | 1540-1740mm |
| Platform width | 548mm |
| Platform length | 1540-1740mm |
| Minimum height | 330mm |
| Lifting time | ≤50S |
| Lowering time | ≤60S |
| Voltage AC 400 or 230V ± 5% 50 Hz | |
 |
 |
 |
|

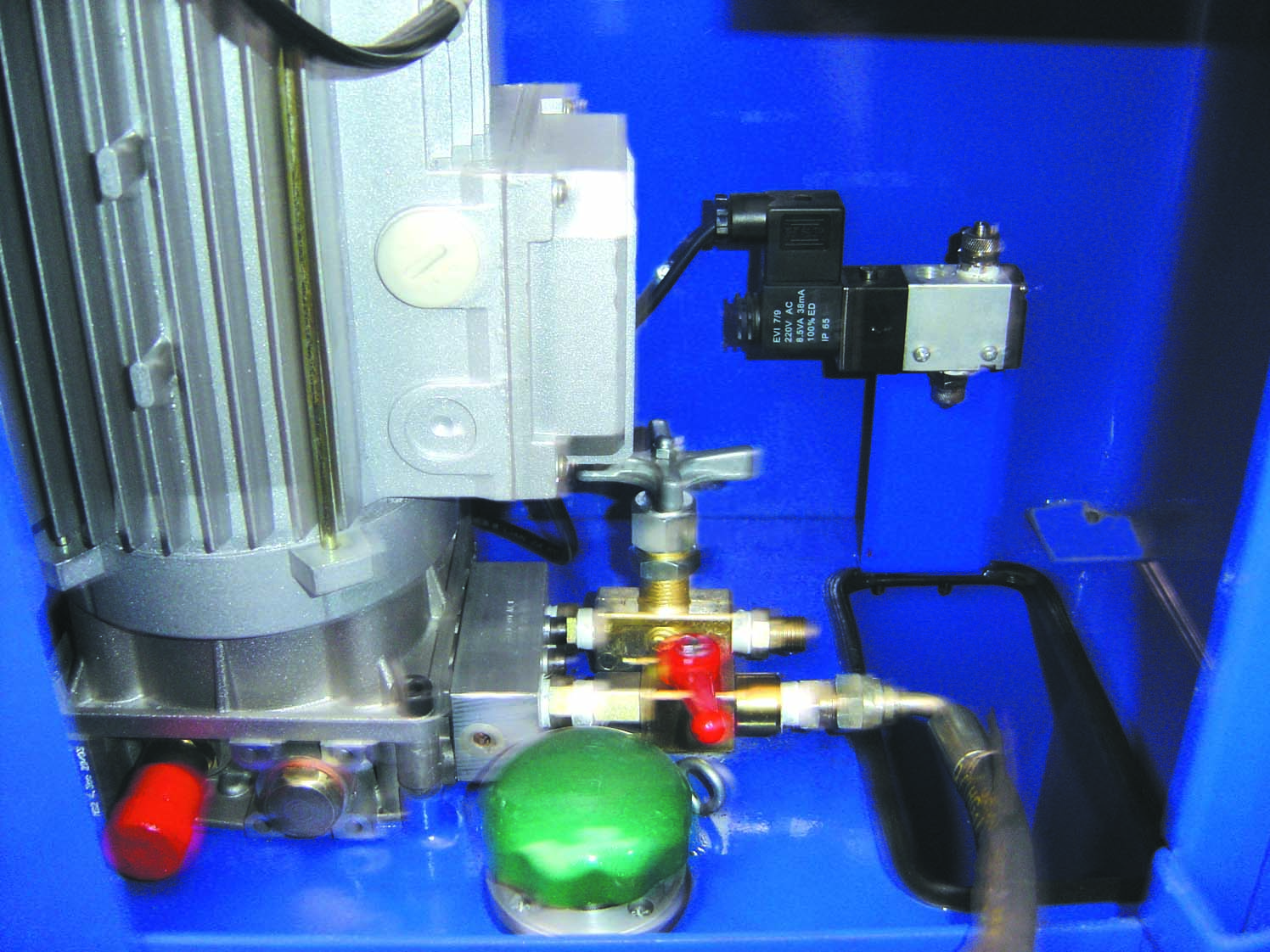

| Italian Hydraulic Pump | |
 |
