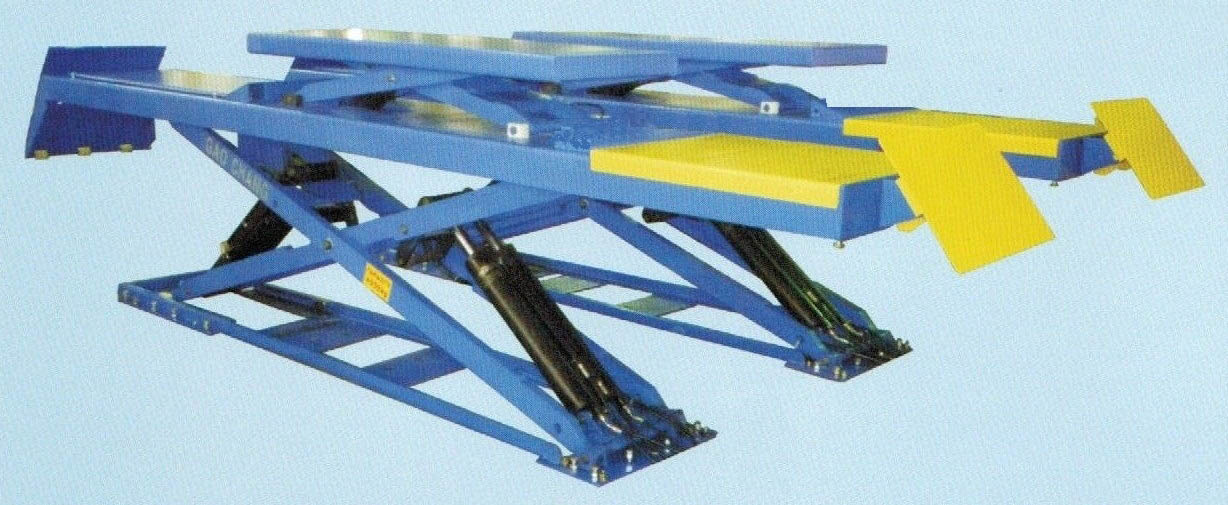

Double Scissor Lift
Low Profile Double Scissor Lift for Alignment, GC-3.5MSL, GC-4.5MSL, GC-5.5MSL
Features
- Profile and wheel free lift scissor structure for on ground installation
- Perform stable and reliable relying on imported high quality hydraulic, pneumatic and electrical components
- Good synchronization and precise leveling for alignment
- Position of truntable can be adjusted to suit for various types of vehicles

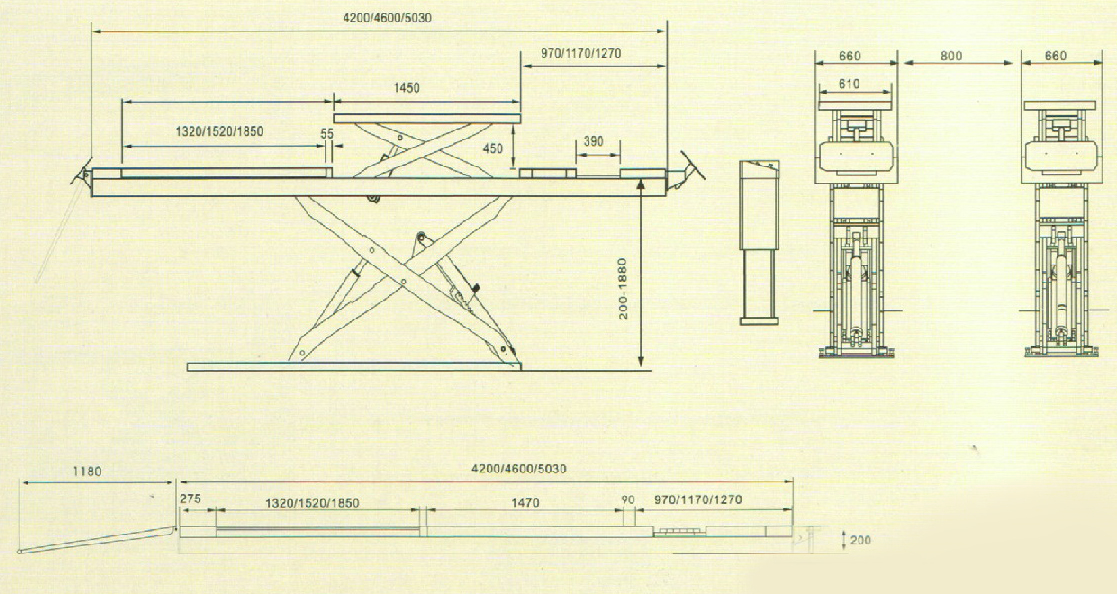

Specifications
| Model | GC-3.5MSL | GC-4.5MSL | GC-5.5MSL |
| Capacity | 3500kg | 4500kg | 5500kg |
| Lifting height | 1880mm | ||
| Platform length | 4200mm | 4600mm | 5030mm |
| Platform width | 660mm | ||
| Overall length | 5380mm | 5780mm | 6210mm |
| Overall width | 2120mm | ||
| Minimum height | 200mm | ||
| Lifting time | ≤50S | ||
| Lowering time | ≤60S | ||
| Secondary Lift | |||
| Capacity | 3500kg | 4500kg | 5500kg |
| Lifting height | 450mm | ||
| Platform length | 1450mm | ||
| Platform width | 610mm | ||
| Lifting time | ≤20S | ||
| Lowering time | ≤30S | ||
 Optional: Double extension Single extension |
 |
