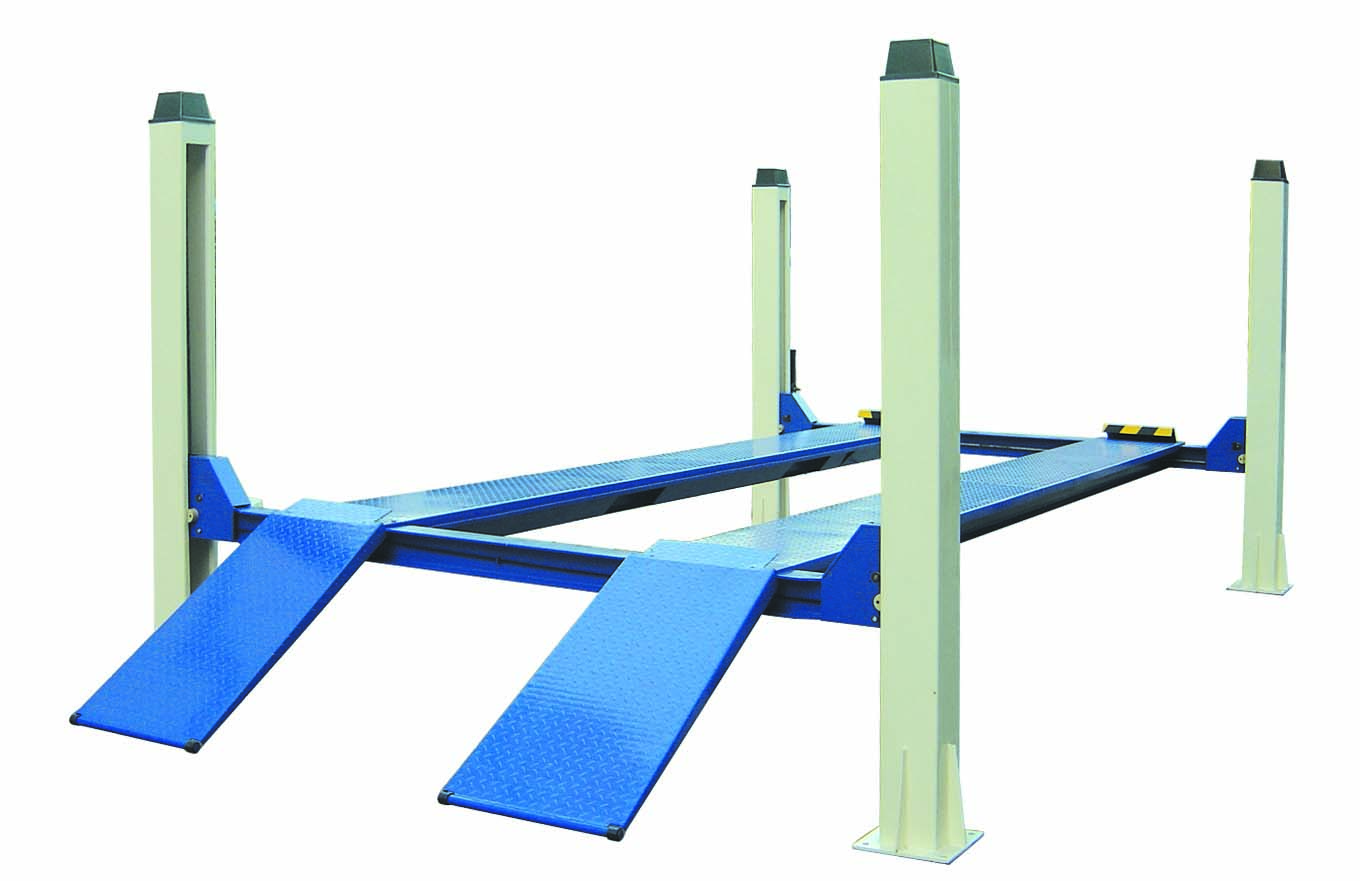

Four Post Lift
Four Post Lift, GC-3.5F, GC-4.0F, GC-4.5F, GC-5.0F, GC-5.5F, GC-6.5F, GC-8.0F, GC-10.0F
Four Post Lift for Workshop
- Easy for tyre mount and dismount, and chassis mainenance.
- Device performs stable and liable work with anti-braking rope safety insurance.
- With second liftig trolley guide rail and can optional add Rolling Jack.

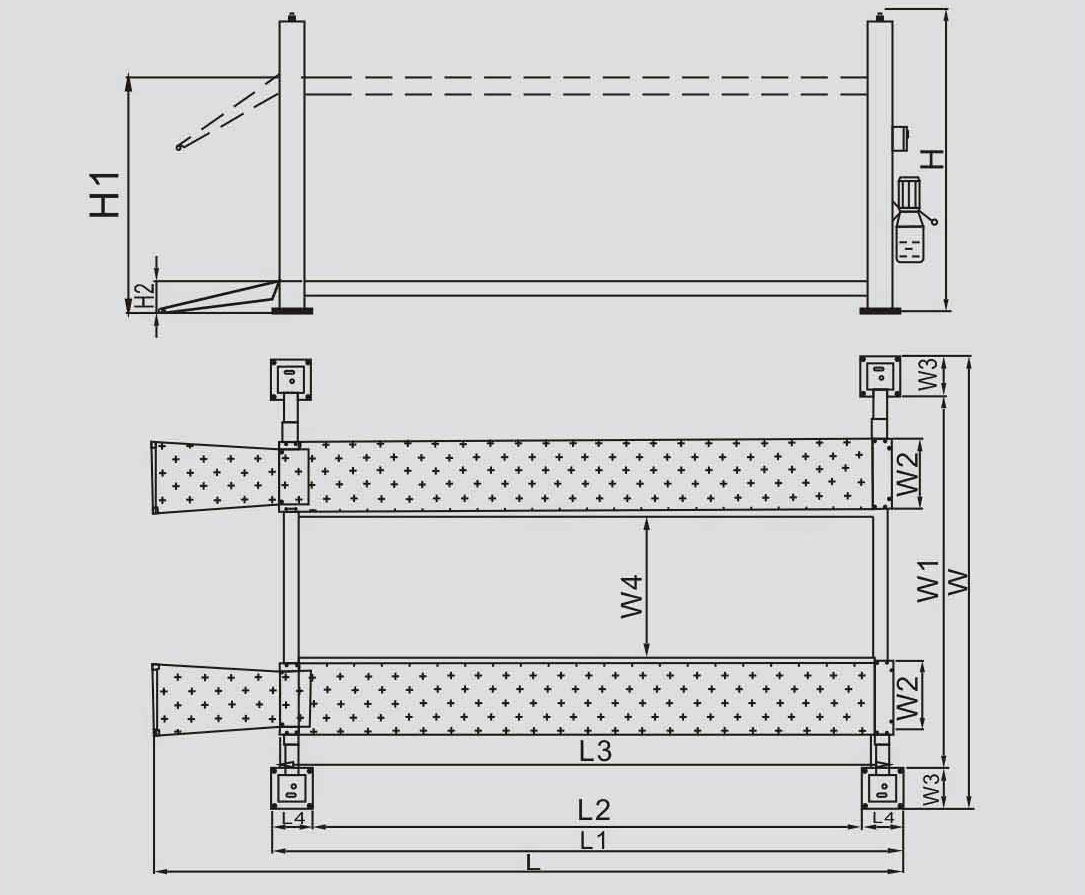

Specifications
| Capacity | 3500kg | 4000kg | 4500kg | 5000kg | 5500kg | 6500kg | 8000kg | 10000kg |
| Lifting height | 1770mm | 1846mm | 1800mm | 1830mm | ||||
| Overall width | 3124mm | 3342mm | 3424mm | 3614mm | ||||
| Overall length | 5206mm | 5747mm | 6288mm | 7020mm | 7640mm | |||
| Platform width | 490mm | 510mm | 670mm | |||||
| Platform length | 4260mm | 4660mm | 5190mm | 5546mm | 5720mm | |||
| Minimum height | 170mm | 196mm | 210mm | 245mm | ||||
| Lifting time | ≤50S | |||||||
| Lowering time | ≤60S | |||||||
| Voltage AC 400 or 230V ± 5% 50 Hz | ||||||||

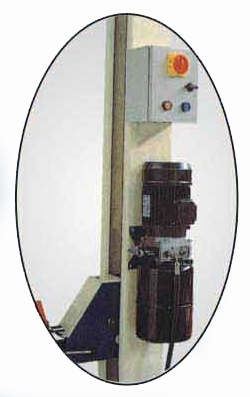

 Italian Hydraulic Pump |
 |
 |
 |

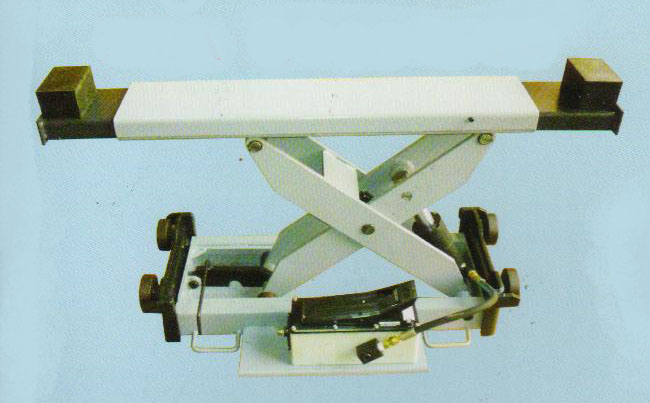

| Rolling Jack (Optional) |
